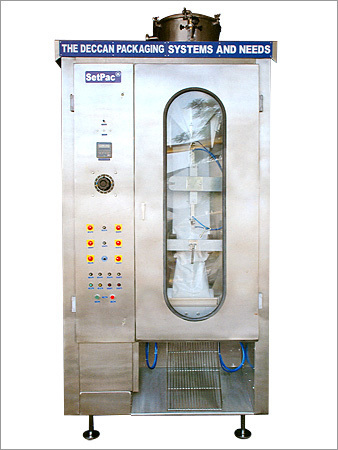

Working on ethical business policies, we have been able to manufacture, export and supply a superior quality of Servo Controlled Mechanical Pouch Packing Machine. This machine is made using optimum grade components in our highly advanced manufacturing plant. We also make sure that these machines are manufactured under supervision of our quality controllers. With the aid of our rich distribution network, we have ensured to deliver Servo Controlled Mechanical Pouch Packing Machine at clients' specified locations within predefined time frame.
Specifications:
Product to pack | Milk/Butter & Milk/lassie |
Type of Machine | Fully automatic twin head mechanically controls through PLC, FFS |
Model | Set Pac-2250G (High Speed) |
Feeding systems | Gravity flow |
Packaging range | 200/500/1000 ml |
Accuracy in volume | +0.5% of the Quantity Packed |
Accuracy in length | +1mm for all width |
Speed of the machine | 70-80/minute/head up to 500 ml only. |
Packing Material | LLDP/LLDPE 3 Color printed |
Film thickness | 40 to 50 microns of good quality 5/7/9 multi layer |
Film width | 322 + 1mm |
Film roll weight | 15 to 22 kgs |
Type of seal | Vertical overlap/Horizontal round import |
Material of construction | S.S/M.S/Aluminum |
Injection system | As per customer's requirement |
Horizontal seal | Impulse System |
Vertical seal | Impulse System |
Electric control panel | As per Industrial Standard |
Movement / Operation | Servo motor and Servo drive system |
Motor / Gear box | Standard Make. |
Electric supply | 3 Phase with regulated voltage and neutral. |
Cooling water requirement | 200 Lts / Hour @ 5 degree centigrade. |
Air pressure requirement |
|
Machine power Consumption | 4.5 K.W. / Hour |
Machine weight | 750kgs Approx. |
Other utility requirement if | As above only |
PLC Control | Included machine will be with PLC |
Photo sensor | Including with PLC |
Coding unit | Including |
Pouch counter / Alarm | Including with PLC |
|
|
